9HS306R

9HS306R is a 304 SS Helicoid Flighting & Screws product manufactured by KWS Mfg. Request a Quote below for this and other 304 Stainless Steel Stock Components.

3D Preview Trigger | KWS Manufacturing
helicoid-screw-and-flighting

Download CAD files

Dimensional Drawing for CEMA Stock Components

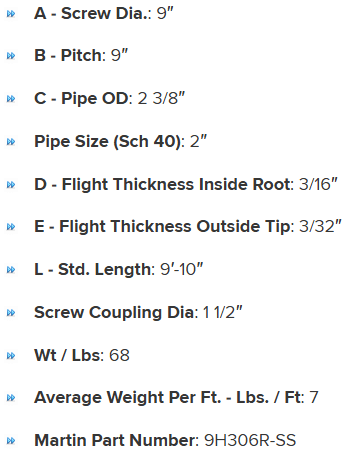

Specifications

A - Diameter Tolerance Minus

3/16"

A - Diameter Tolerance Plus

1/16"

L - Std. Length

9’-10"

A - Screw Dia.

9"

Martin Part Number

9H306R-SS

Average Weight Per Ft. - Lbs./Ft.

7

Pipe Sch 40 - C- Pipe OD

2 3/8"

Pipe Sch 40 - Size

2"

D - Flight Thcknss Inside Root

3/16"

B - Pitch

9"

Screw Coupling Dia

1 1/2"

B - Pitch Tolerance Minus

1/4"

B - Pitch Tolerance Plus

3/4"

E - Flight Thcknss Outside Tip

3/32"

Wt / Lbs

68
