HGB2163716H

HGB2163716H is a Hard Iron Hanger Bearings product manufactured by KWS Mfg. Request a Quote below for this and other Carbon Steel Stock Components.

3D Preview Trigger | KWS Manufacturing
Style-216-Hard-Iron

Download CAD files

Dimensional Drawing for CEMA Stock Components

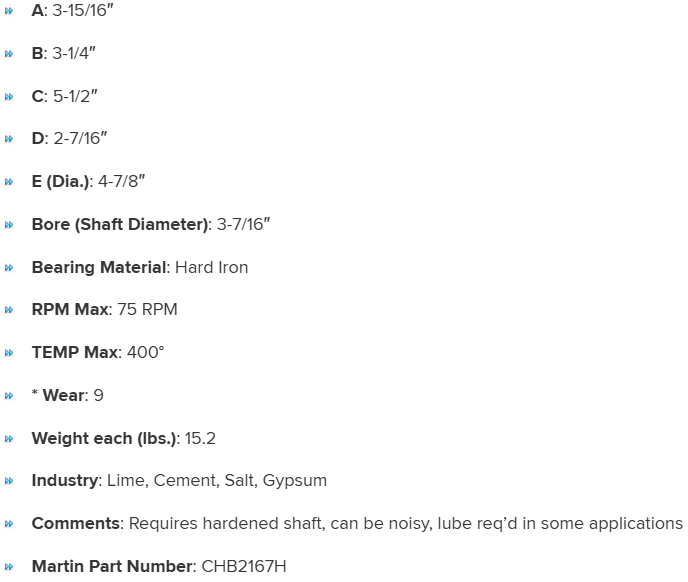

Specifications

A

3-15/16"

C

5-1/2"

Martin Part Number

CHB2167H

Comments

Requires hardened shaft, can be noisy, lube req'd in some applications

B

3-1/4"

D

2-7/16"

RPM Max

75 RPM

Bearing Material

Hard Iron

E (Dia.)

4-7/8"

TEMP Max

400°

Bore (Shaft Diameter)

3-7/16"

* Wear

9

Weight each (lbs.)

15.2

Industry

Lime, Cement, Salt, Gypsum
