HGB2262H

HGB2262H is a Hard Iron Hanger Bearings product manufactured by KWS Mfg. Request a Quote below for this and other Carbon Steel Stock Components.

3D Preview Trigger | KWS Manufacturing
Style-226-Hard-Iron

Download CAD files

Add to quote
Dimensional Drawing for CEMA Stock Components

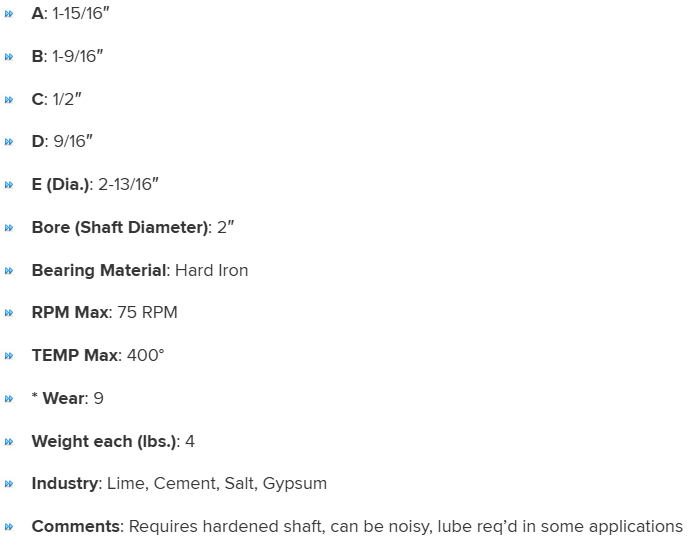

Specifications

A

1-15/16"
C

1/2"
Comments

Requires hardened shaft, can be noisy, lube req'd in some applications
B

1-9/16"
D

9/16"
RPM Max

75 RPM
Bearing Material

Hard Iron
E (Dia.)

2-13/16"
TEMP Max

400°
Bore (Shaft Diameter)

2"
* Wear

9
Weight each (lbs.)

4
Industry

Lime, Cement, Salt, Gypsum
