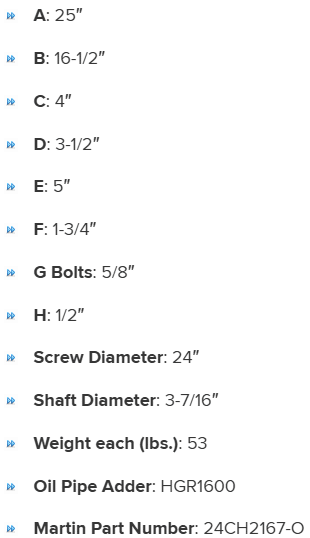

Specifications
| A | 25" |
|---|---|
| C | 4" |
| Martin Part Number | 24CH2167-O |
| Oil Pipe Adder | HGR1600 |
| B | 16-1/2" |
| D | 3-1/2" |
| Screw Diameter | 24" |
| Shaft Diameter | 3-7/16" |
| E | 5" |
| F | 1-3/4" |
| Weight each (lbs.) | 53 |
| G Bolts | 5/8" |
| H | 1/2" |
HGR242163716GP
HGR242163716GP is a Style 216 Hangers for U-Troughs product manufactured by KWS Mfg. Request a Quote below for this and other Carbon Steel Stock Components.
Download CAD files
