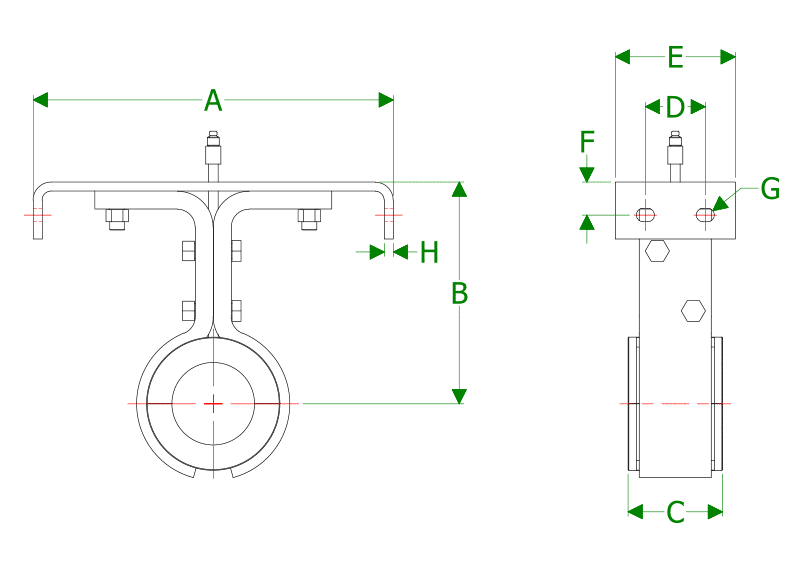

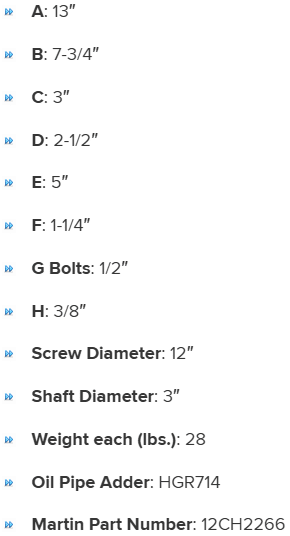

Specifications
| A | 13" |
|---|---|
| C | 3" |
| Martin Part Number | 12CH2266 |
| Oil Pipe Adder | HGR714 |
| B | 7-3/4" |
| D | 2-1/2" |
| Screw Diameter | 12" |
| Shaft Diameter | 3" |
| E | 5" |
| F | 1-1/4" |
| Weight each (lbs.) | 28 |
| G Bolts | 1/2" |
| H | 3/8" |
HGR122263

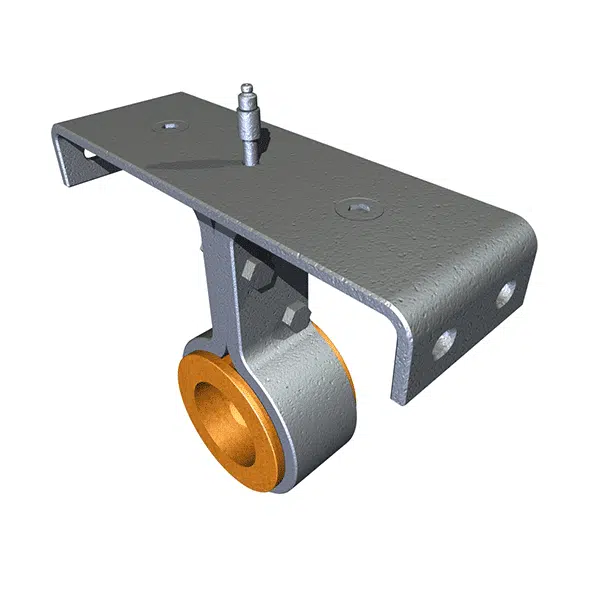

HGR122263 is a Style 226 Hangers for U-Troughs product manufactured by KWS Mfg. Request a Quote below for this and other Carbon Steel Stock Components.
Download CAD files
