IC331240

IC331240 is a Internal Collars product manufactured by KWS Mfg. Request a Quote below for this and other Carbon Steel Stock Components.

3D Preview Trigger | KWS Manufacturing
internal-collars

Download CAD files

Add to quote
Dimensional Drawing for CEMA Stock Components

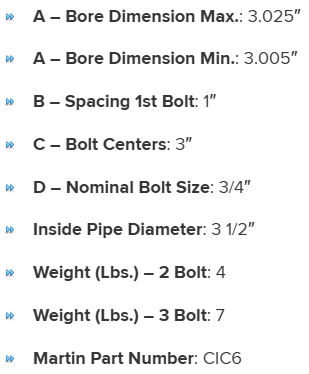

Specifications

C - Bolt Centers

3"
A - Bore Dimension Max.

3.025"
A - Bore Dimension Min.

3.005"
Martin Part Number

CIC6
D - Nominal Bolt Size

3/4"
B - Spacing 1st Bolt

1"
Weight (Lbs.) - 2 Bolt

4
Weight (Lbs.) - 3 Bolt

7
Inside Pipe Diameter

3 1/2"
