12SF524R

12SF524R is a Sectional Flighting & Screws product manufactured by KWS Mfg. Request a Quote below for this and other Carbon Steel Stock Components.

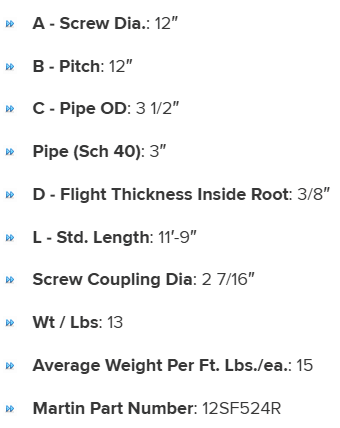

Specifications

A - Diameter Tolerance Minus

5/16"

A - Diameter Tolerance Plus

1/8"

L - Std. Length

11’-9"

A - Screw Dia.

12"

Martin Part Number

12SF524R

Average Weight Per Ft. Lbs./ea.

15

Pipe Sch 40 - C- Pipe OD

3 1/2"

Pipe Sch 40 - Size

3"

D - Flight Thcknss Inside Root

3/8"

B - Pitch

12"

Screw Coupling Dia

2 7/16"

B - Pitch Tolerance Minus

1/4"

B - Pitch Tolerance Plus

3/4"

Wt / Lbs

13
