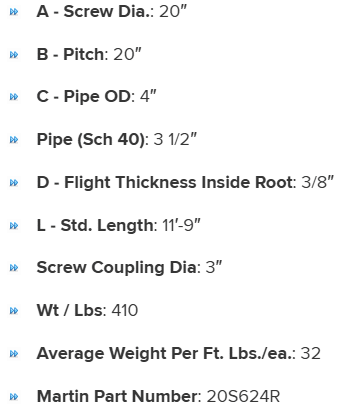

Specifications
A - Diameter Tolerance Minus | 3/8" |
---|---|
A - Diameter Tolerance Plus | 3/16" |
L - Std. Length | 11-9" |
A - Screw Dia. | 20" |
Martin Part Number | 20S624R |
Average Weight Per Ft. Lbs./ea. | 32 |
Pipe Sch 40 - C- Pipe OD | 4" |
Pipe Sch 40 - Size | 3 1/2" |
D - Flight Thcknss Inside Root | 3/8" |
B - Pitch | 20" |
Screw Coupling Dia | 3" |
B - Pitch Tolerance Minus | 1/2" |
B - Pitch Tolerance Plus | 7/8" |
Wt / Lbs | 410 |
