24S724R

24S724R is a Sectional Flighting & Screws product manufactured by KWS Mfg. Request a Quote below for this and other Carbon Steel Stock Components.

3D Preview Trigger | KWS Manufacturing
sectional-screw-and-flighting

Download CAD files

Dimensional Drawing for CEMA Stock Components

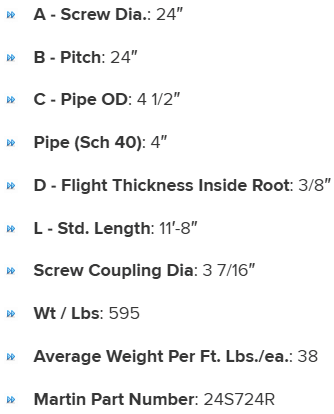

Specifications

A - Diameter Tolerance Minus

3/8"

A - Diameter Tolerance Plus

3/16"

L - Std. Length

11’-8"

A - Screw Dia.

24"

Martin Part Number

24S724R

Average Weight Per Ft. Lbs./ea.

38

Pipe Sch 40 - C- Pipe OD

4 1/2"

Pipe Sch 40 - Size

4"

D - Flight Thcknss Inside Root

3/8"

B - Pitch

24"

Screw Coupling Dia

3 7/16"

B - Pitch Tolerance Minus

1/2"

B - Pitch Tolerance Plus

7/8"

Wt / Lbs

595
