DSP24316

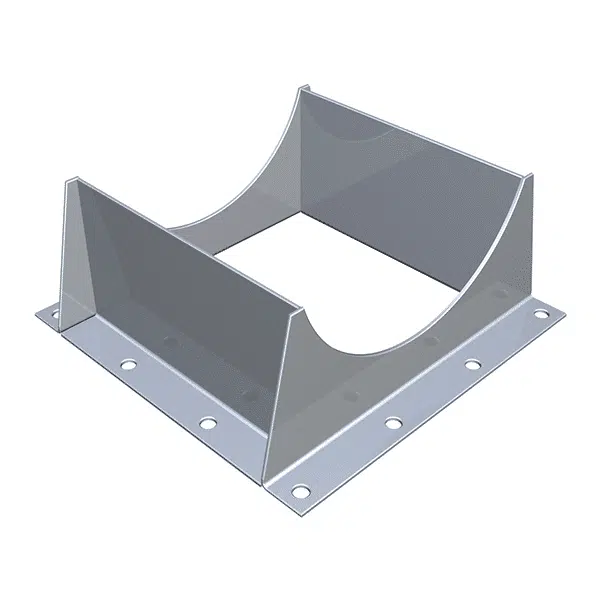

DSP24316 is a U-Trough Discharge Spouts product manufactured by KWS Mfg. Request a Quote below for this and other Carbon Steel Stock Components.

3D Preview Trigger | KWS Manufacturing
discharges

Download CAD files

Add to quote

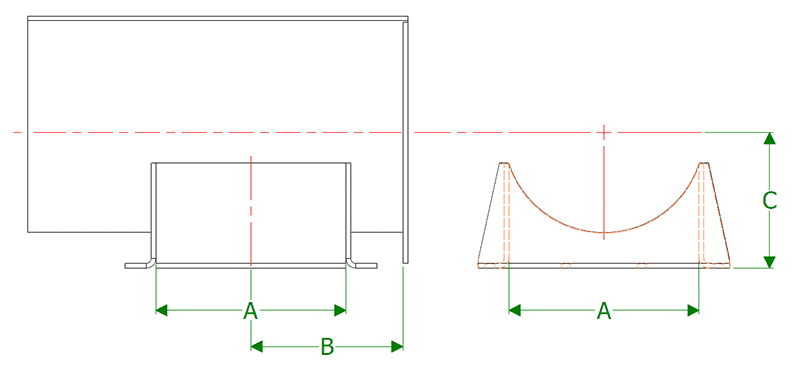

Dimensional Drawing for CEMA Stock Components

Specifications

A

25"
C

15-3/8"
Martin Part Number

24TSD7
D

3/8"
B Min.

17-1/2"
Discharge Thickness

3/16"
Screw Diameter

24"
E

16-3/8"
F

42"
Weight (Lbs.)

75
Hand Slide Kit

HS24KIT
Weight With Handslide Kit

117
