304 SS 2-Bolt End Shafts

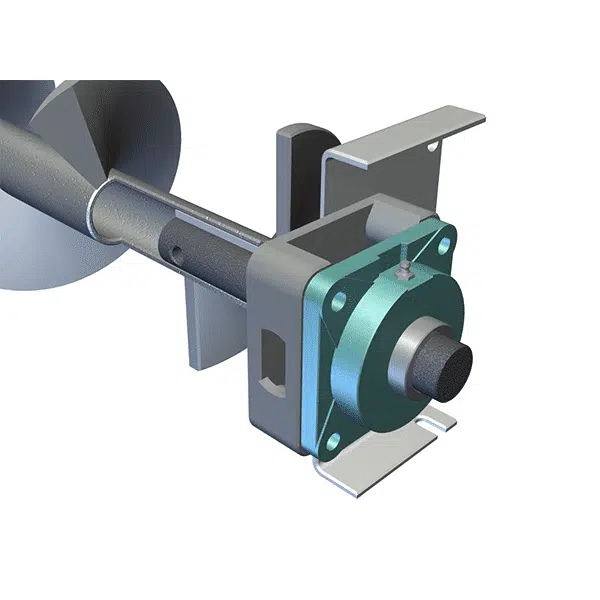

End shafts support the tail end of the screw section at the non-drive end of the screw conveyor. End shafts are typically the same diameter as the coupling and drive shafts.

304 SS 2-Bolt End Shafts

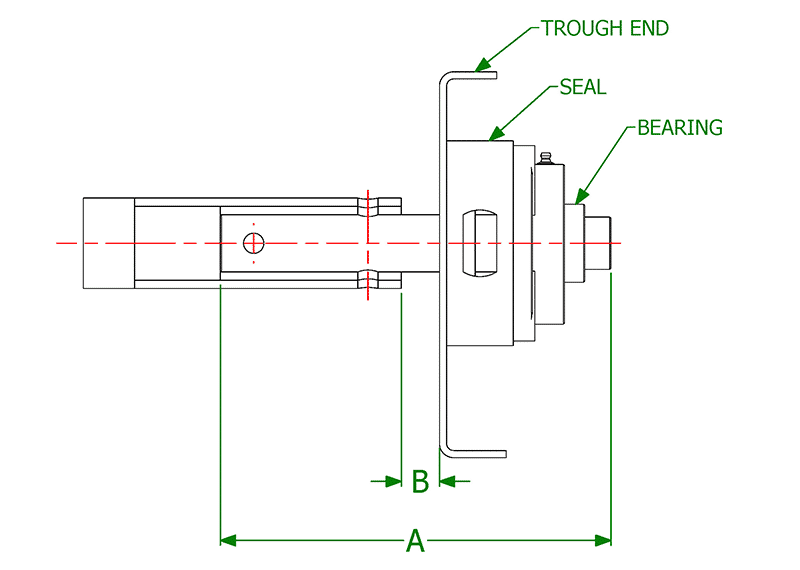

Dimensional Drawing for 304 SS 2-Bolt End Shafts
  • Model
    Number
  • Shaft
    Diameter
  • A
  • B
  • Drilling
  • 3D Cad

    • ES112BBSS
    • Shaft Diameter: 1-1/2"
    • A: 11-3/4"
    • B: 1"
    • Drilling: 2-Bolt

    • ES1BBSS
    • Shaft Diameter: 1"
    • A: 7-1/2"
    • B: 3/4"
    • Drilling: 2-Bolt

    • ES2716BBSS
    • Shaft Diameter: 2-7/16"
    • A: 13"
    • B: 1-1/2"
    • Drilling: 2-Bolt

    • ES2BBSS
    • Shaft Diameter: 2"
    • A: 12"
    • B: 1"
    • Drilling: 2-Bolt

    • ES3716BBSS
    • Shaft Diameter: 3-7/16"
    • A: 17-3/8"
    • B: 2"
    • Drilling: 2-Bolt

    • ES3BBSS
    • Shaft Diameter: 3"
    • A: 14"
    • B: 1-1/2"
    • Drilling: 2-Bolt
